Note
Click here to download the full example code
Selective (Binary) Classification for Human-AI Collaboration
This example shows how to use the SelectiveClassification and RiskController
classes to perform selective classification.
In which use case? When you want to assist a human decision-maker with a machine learning model.
The goal is to provide a model that can make predictions only when it is confident enough to do so. We will identify three different scenarios:
- The model is confident enough to make a positive feedback (i.e., the model predicts a positive class and is confident enough to do so).
- The model is confident enough to make a negative feedback (i.e., the model predicts a negative class and is confident enough to do so).
- The model is not confident enough to make a feedback (i.e., the model abstains from making a prediction).
import os
import sys
import warnings
from typing import Any, Dict, List, Tuple
basedir = os.path.abspath(os.path.join(os.path.curdir, ".."))
sys.path.append(basedir)
basedir = os.path.abspath(os.path.join(os.path.curdir, "."))
sys.path.append(basedir)
import numpy as np
from risk_control import RiskController
from risk_control.decision.base import BaseDecision
from risk_control.parameter import BaseParameterSpace
from risk_control.plot import plot_p_values, plot_risk_curve
from risk_control.risk import (
AbstentionRisk,
BaseRisk,
FalseDiscoveryRisk,
)
random_state = 42
np.random.seed(42)
First, we load the data and train a model.
from sklearn.datasets import load_breast_cancer
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import train_test_split
data = load_breast_cancer()
X_train, X_test, y_train, y_test = train_test_split(
data.data, data.target, test_size=0.33, random_state=random_state
)
X_calib, X_test, y_calib, y_test = train_test_split(
X_test, y_test, test_size=0.5, random_state=random_state
)
# Flip randomly 10% of the labels
y_train = np.where(
np.random.rand(y_train.shape[0]) < 0.2,
1 - y_train,
y_train,
)
# model = RandomForestClassifier
with warnings.catch_warnings(action="ignore"):
model = LogisticRegression(
penalty="l1", solver="liblinear", random_state=random_state
)
model.fit(X_train, y_train)
At this step, what are the performance of the model on the test set?
from sklearn.metrics import accuracy_score
y_pred = model.predict(X_test)
score = accuracy_score(y_test, y_pred)
print(f"Accuracy on the test set: {score:.2f}")
Out:
Accuracy on the test set: 0.93
We propose to compute the confidence interval of the performance of the model.
from scipy.stats import norm
def confidence_interval(array: np.ndarray, alpha: float = 0.05) -> Tuple[float, float]:
n = len(array)
mean = np.mean(array)
var = np.var(array)
se = np.sqrt(var / n)
z = norm.ppf(1 - alpha / 2)
return mean - z * se, mean + z * se
array = np.array(y_pred == y_test)
score_ci = confidence_interval(array, alpha=0.1)
print(f"Confidence interval of the accuracy: {score_ci[0]:.2f} - {score_ci[1]:.2f}")
Out:
Confidence interval of the accuracy: 0.88 - 0.97
We will define a new decision rule that will be used to make decisions.
from sklearn.base import BaseEstimator
from risk_control.abstention import _abs
from risk_control.decision.classification import BaseClassificationDecision
class SelectiveClassification(BaseClassificationDecision):
def __init__(
self,
estimator: BaseEstimator,
*,
pmin: float = 0.0,
pmax: float = 0.0,
**kwargs: Any,
) -> None:
super().__init__(estimator=estimator, **kwargs)
self.pmin = pmin
self.pmax = pmax
def make_decision(self, y_output: np.ndarray) -> np.ndarray:
"""Make a decision based on the output of the model."""
if self.predict_mode == "score":
(n_samples,) = y_output.shape
y_min = np.zeros_like(y_output)
y_max = np.ones_like(y_output)
y_empty = np.empty_like(y_output) * (_abs)
y_post = np.where(
y_output <= self.pmin,
y_min,
np.where(y_output >= self.pmax, y_max, y_empty),
)
else:
(n_samples, n_features) = y_output.shape
y_min = np.zeros_like(n_samples)
y_max = np.ones_like(n_samples)
y_empty = np.empty_like(n_samples) * (_abs)
y_post = np.where(
y_output[..., 0] <= self.pmin,
y_min,
np.where(y_output[..., 1] >= self.pmax, y_max, y_empty),
)
return y_post
Here, we define the decision, the risks, and the parameter space.
decision: BaseDecision = SelectiveClassification(
estimator=model,
predict_mode="score",
)
risks: List[BaseRisk] = [FalseDiscoveryRisk(0.1), AbstentionRisk(0.5)]
params: BaseParameterSpace = {
"pmax": np.linspace(-2.0, 2.0, 21),
"pmin": np.linspace(-2.0, 2.0, 21),
# "pmax": np.linspace(.0, 1., 51),
# "pmin": np.linspace(.0, 1., 51),
}
def lambda_to_select(l_value: Dict[str, Any]) -> bool:
pmin = l_value["pmin"]
pmax = l_value["pmax"]
return pmin <= pmax
controller = RiskController(
decision=decision,
risks=risks,
params=params,
delta=0.1,
lambda_to_select=lambda_to_select,
)
Now, we fit the model and plot the results. In practice, this function will be used to find the valid thresholds that control the risks at the given levels with a confidence level given by the data.
A summary of the results is printed that contains the optimal threshold and the corresponding risks.
controller.fit(X_calib, y_calib)
controller.summary()
Out:
=== SUMMARY ===
p(risk<=alpha) >= 1-delta
1-delta: 0.90
=== risks ===
FDR | optimal: 0.03 | alpha: 0.1
abstension | optimal: 0.26 | alpha: 0.5
=== params ===
pmax | optimal: 0.80
pmin | optimal: 0.20

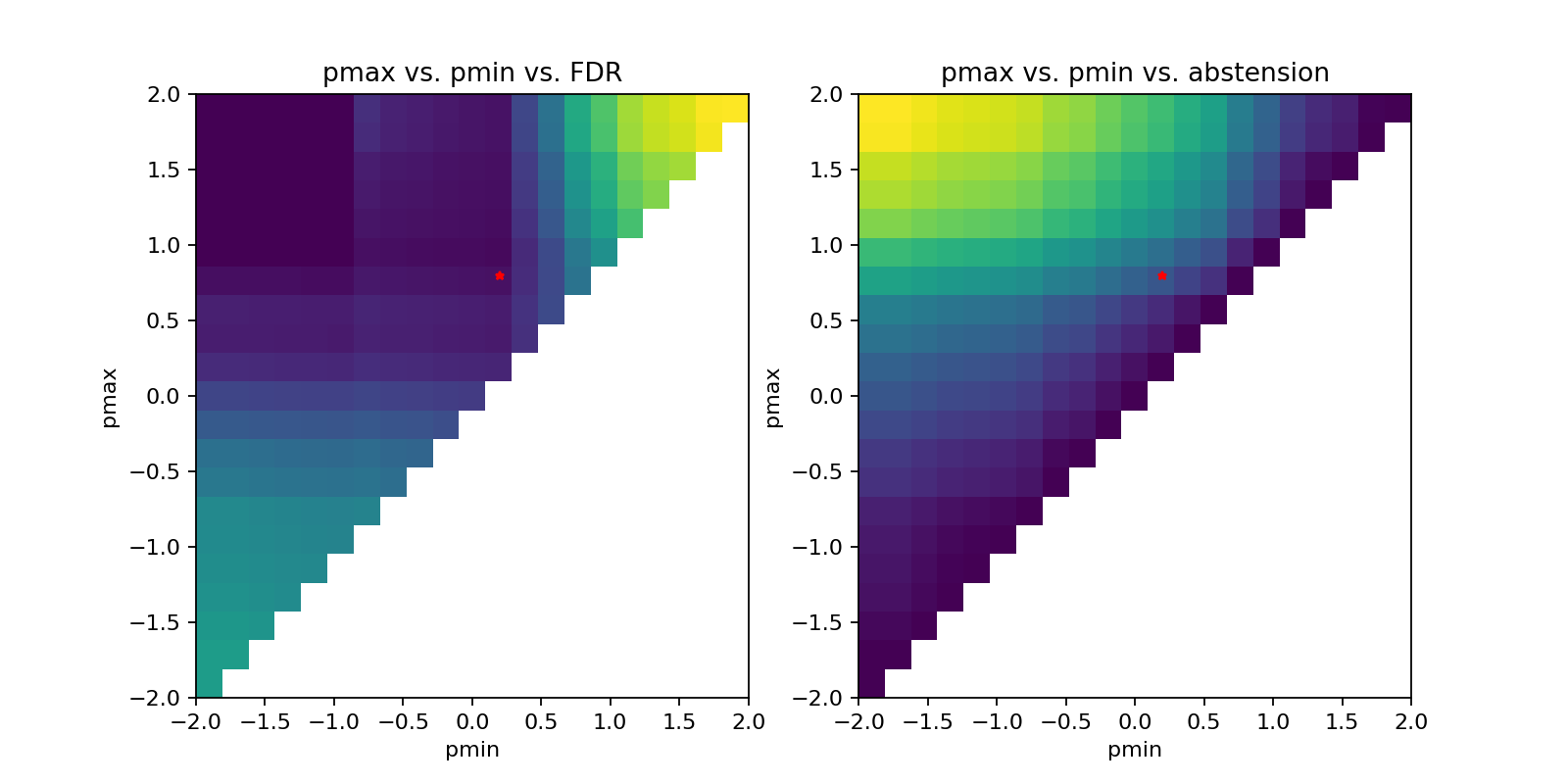

We can plot the risk curves for each risk.
plot_risk_curve(controller)
Out:
/Users/thibaultcordier/VSCodeProjects/mapie-experiments/RiskControl/risk_control/plot.py:201: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
plt.show()
We can also plot the p-values for each multiple tests (parameter space).
plot_p_values(controller)
Out:
/Users/thibaultcordier/VSCodeProjects/mapie-experiments/RiskControl/risk_control/plot.py:67: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
plt.show()
Finally, we can use the optimal threshold to predict on the test set and compute the risks. The risks are computed on the test set and converted to performance metrics. We can check that the risks are controlled at the given levels.
y_pred = controller.predict(X_test)
for risk in risks:
risk_array = risk.compute(y_pred, y_test)
ratio = risk.convert_to_performance(np.nanmean(risk_array))
risk_array = risk_array[~np.isnan(risk_array)]
score_ci = confidence_interval(risk_array, alpha=0.1)
smin = risk.convert_to_performance(score_ci[1])
smax = risk.convert_to_performance(score_ci[0])
print(f"{risk.name}: {ratio:.2f} | {smin:.2f} - {smax:.2f} ")
Out:
FDR: 0.04 | 0.09 - 0.00
abstension: 0.29 | 0.36 - 0.21
Total running time of the script: ( 0 minutes 0.346 seconds)
Download Python source code: plot_ai_assistance.py
