Precision-Recall Trade-off for Binary Classification

This example shows how to use the StandardClassification and RiskController classes to perform precision-recall trade-off for binary classification.

import os
import sys
import warnings
from typing import List, Tuple

basedir = os.path.abspath(os.path.join(os.path.curdir, ".."))
sys.path.append(basedir)
basedir = os.path.abspath(os.path.join(os.path.curdir, "."))
sys.path.append(basedir)

import numpy as np

from risk_control import RiskController
from risk_control.decision.base import BaseDecision
from risk_control.decision.decision import BinaryDecision
from risk_control.parameter import BaseParameterSpace
from risk_control.plot import plot_p_values, plot_risk_curve
from risk_control.risk import (
    BaseRisk,
    PrecisionRisk,
    RecallRisk,
)

random_state = 42
np.random.seed(42)

First, we load the data and train a model.

from sklearn.datasets import make_classification
from sklearn.linear_model import LogisticRegression
from sklearn.model_selection import train_test_split

X, y = make_classification(n_classes=2, n_samples=5000)

# Flip randomly 10% of the labels
y = np.where(
    np.random.rand(y.shape[0]) < 0.1,
    1 - y,
    y,
)

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.33, random_state=random_state
)
X_calib, X_test, y_calib, y_test = train_test_split(
    X_test, y_test, test_size=0.5, random_state=random_state
)

# model = RandomForestClassifier
with warnings.catch_warnings(action="ignore"):
    model = LogisticRegression(
        penalty="l1", solver="liblinear", random_state=random_state
    )
    model.fit(X_train, y_train)

Here, we define the decision, the risks, and the parameter space.

decision: BaseDecision = BinaryDecision(estimator=model)
risks: List[BaseRisk] = [PrecisionRisk(0.3), RecallRisk(0.3)]
params: BaseParameterSpace = {"threshold": np.linspace(-2.0, 2.0, 101)}

controller = RiskController(
    decision=decision,
    risks=risks,
    params=params,
    delta=0.1,
)

Now, we fit the model and plot the results. In practice, this function will be used to find the valid thresholds that control the risks at the given levels with a confidence level given by the data.

A summary of the results is printed that contains the optimal threshold and the corresponding risks.

controller.fit(X_calib, y_calib)
controller.summary()

Out:

=== SUMMARY ===
p(risk<=alpha) >= 1-delta
1-delta: 0.90
=== risks ===
precision       | optimal: 0.78 | alpha: 0.7
recall  | optimal: 0.78 | alpha: 0.7
=== params ===
threshold       | optimal: 0.16

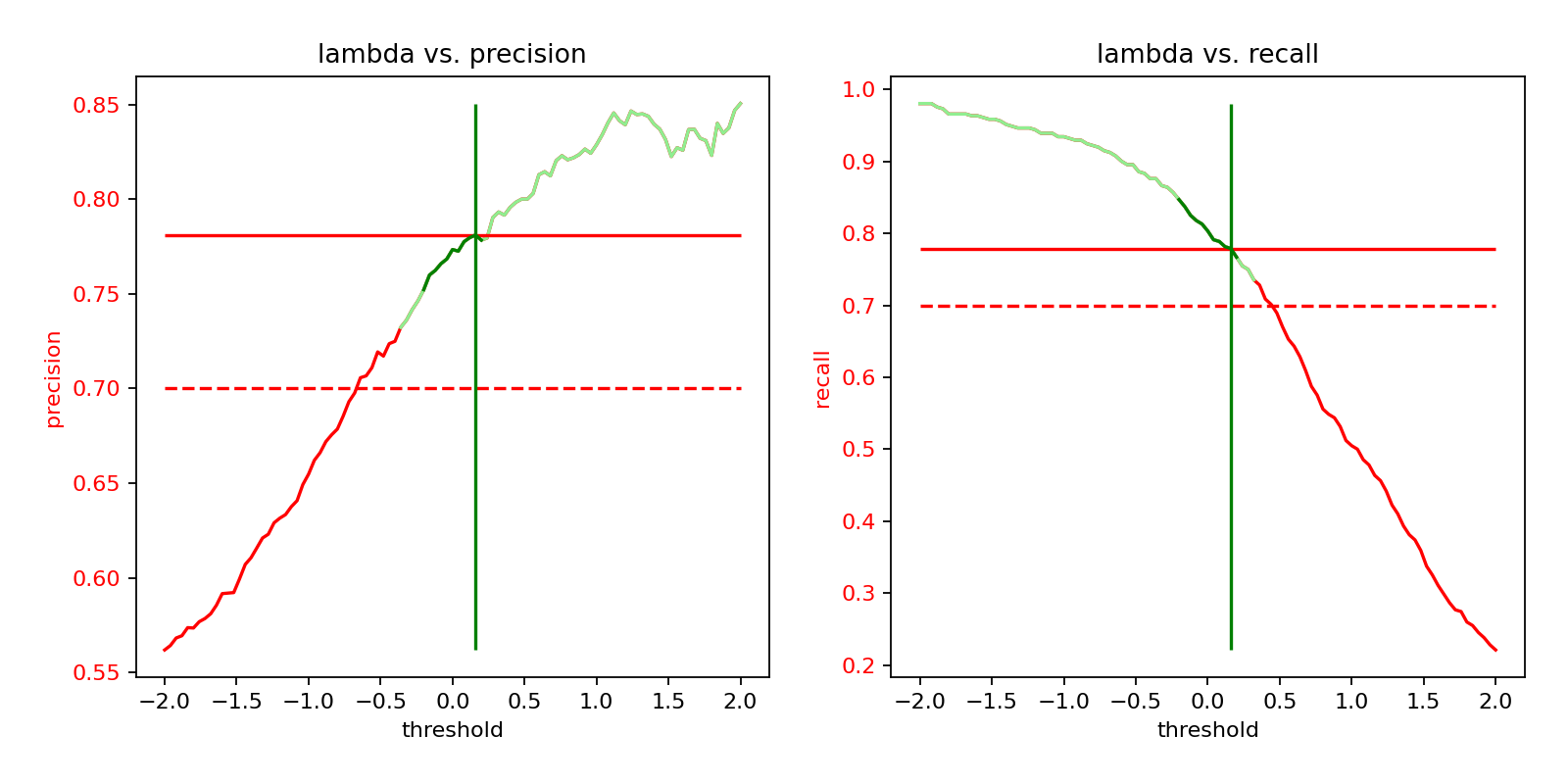

We can plot the risk curves for each risk.

plot_risk_curve(controller)

lambda vs. precision, lambda vs. recall

Out:

/Users/thibaultcordier/VSCodeProjects/mapie-experiments/RiskControl/risk_control/plot.py:151: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  plt.show()

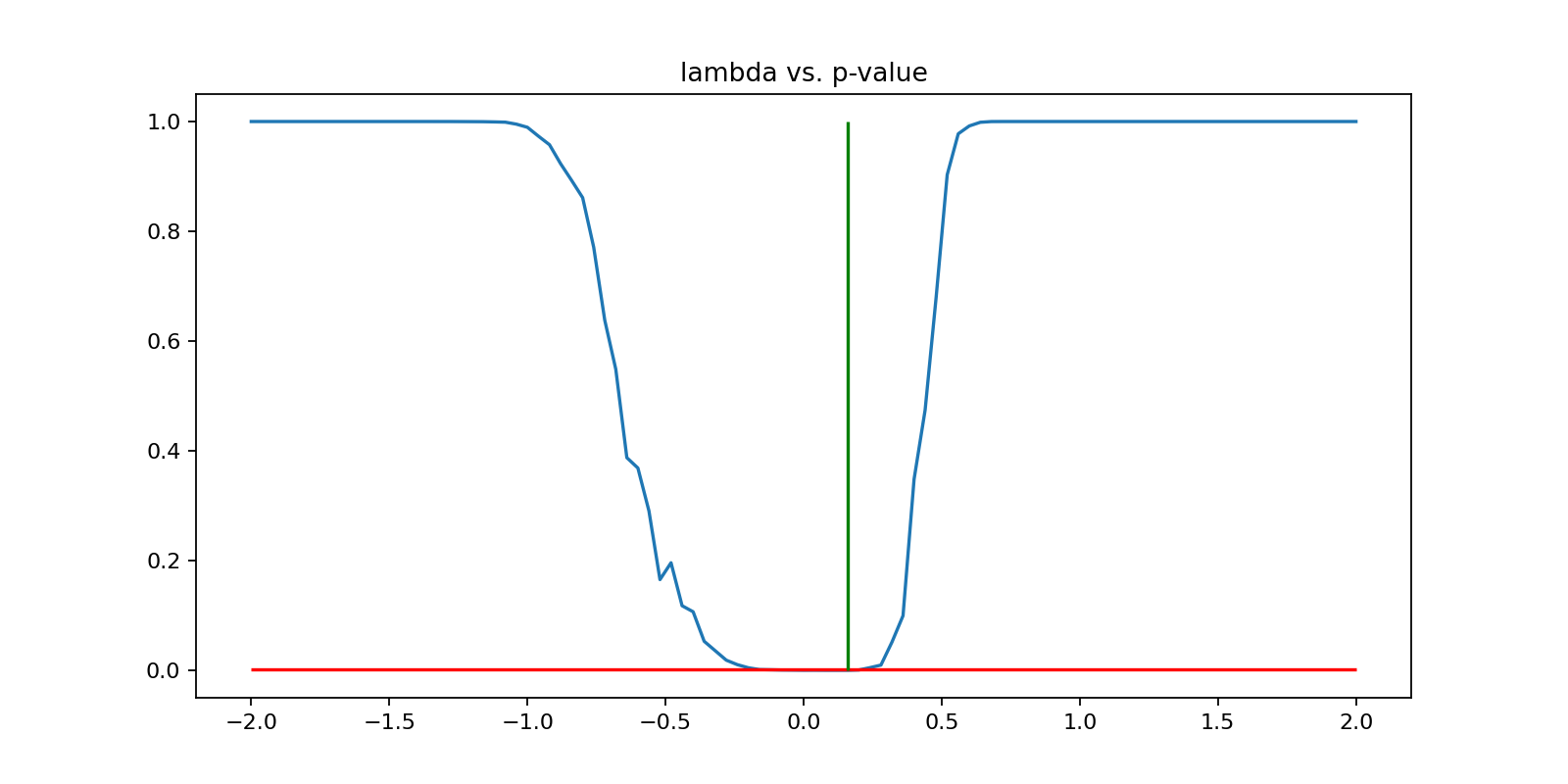

We can also plot the p-values for each multiple tests (parameter space).

plot_p_values(controller)

lambda vs. p-value

Out:

/Users/thibaultcordier/VSCodeProjects/mapie-experiments/RiskControl/risk_control/plot.py:33: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
  plt.show()

Finally, we can use the optimal threshold to predict on the test set and compute the risks. The risks are computed on the test set and converted to performance metrics. We can check that the risks are controlled at the given levels.

from scipy.stats import norm


def confidence_interval(array: np.ndarray, alpha: float = 0.05) -> Tuple[float, float]:
    n = len(array)
    mean = np.mean(array)
    var = np.var(array)
    se = np.sqrt(var / n)
    z = norm.ppf(1 - alpha / 2)
    return mean - z * se, mean + z * se


y_pred = controller.predict(X_test)
for risk in risks:
    risk_array = risk.compute(y_pred, y_test)
    ratio = risk.convert_to_performance(np.nanmean(risk_array))
    risk_array = risk_array[~np.isnan(risk_array)]

    score_ci = confidence_interval(risk_array, alpha=0.1)
    smin = risk.convert_to_performance(score_ci[1])
    smax = risk.convert_to_performance(score_ci[0])
    print(f"{risk.name}: {ratio:.2f} | {smin:.2f} - {smax:.2f} ")

Out:

precision: 0.79 | 0.75 - 0.82
recall: 0.74 | 0.71 - 0.78

Total running time of the script: ( 0 minutes 0.174 seconds)
